MEMS Hydrogen Sensor for Lithium Battery Thermal Runaway

Rainbow Technology's Hydrogen H2 gas sensor module based on MEMS gas sensor is used to test the content of H2 gas in the ambient air. The test data is communicated through I2C and UART interfaces.
MEMS hydrogen sensors are commonly used for detecting hydrogen gas in various applications, particularly in lithium battery systems where hydrogen can be released during thermal runaway. These hydrogen sensors help enhance the safety and reliability of lithium-ion battery systems by detecting hydrogen gas emissions early, which is a key indicator of thermal runaway.

Feature

Highly sensitive to H2 gas

Strong anti-interference to VOCs

Built-in temperature compensation algorithm, external humidity compensation

High sensitivity and fast response

Very low power consumption (<66mW)

Small size (17.8mm × 15.2mm × 6.5mm）

Highly flexible assembly mode and communication interface

Application

Battery Safety Monitoring
Detecting hydrogen buildup during thermal runaway events to prevent fires or explosions.
Used in electric vehicles (EVs), energy storage systems (ESS), and consumer electronics to ensure battery safety.

Early Warning Systems
Integrated into battery management systems (BMS) to provide early warnings of potential failure or dangerous conditions.

Industrial and Commercial Battery Systems
Monitoring large-scale battery systems in data centers, industrial plants, and renewable energy installations for safety and reliability.

Electric Vehicle (EV) Applications

Real-time monitoring in electric and hybrid vehicle batteries to prevent thermal runaway incidents, ensuring passenger safety.

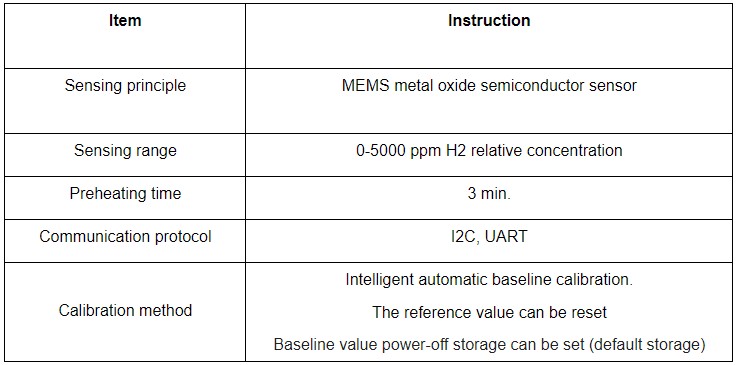

Parameter
