The S4124 Medical Respiratory Sensor is specially designed for the measurement and process control of various medical gases. It is designed based on the company's core technology micro-electromechanical system (MEMS) flow sensor chip, and is suitable for the measurement of clean and relatively dry gases for various purposes. It realizes the digitization and intelligence of the equipment and improves high safety. It has the function of innovating and improving the traditional industry. The wide range of flow range meets the flow measurement needs of different equipment in the industry. The performance characteristics of high sensitivity, high reliability, high stability and low cost can promote the industry to develop in the direction of energy saving

and intelligence.

Features

￭Wide flow range: ±0-950SLPM

￭High accuracy (1.5% F.S accuracy)

￭Forward and reverse gas flow measurement

￭Linear output and no temperature and pressure compensation required

￭Maintain long-term stability with minimal zero drift

￭Fast response time (up to 5ms response time)

￭Solid-state sensor core (no surface voids or fragile membranes), resistant to clogging and pressure shock

￭Analog output (1 to 5 V) (digital I2C communication output available)

￭Available for relatively humid gas measurement

￭Operating temperature: -25°C to 85°C, storage temperature: -40°C to 90°C, humidity: 0~100%RH

￭Sensor is shock resistant up to 100 g

￭Sensor is resistant to condensation

Applications

￭ Ventilators

￭ Oxygen concentrators

￭ Gas masks and respirators

￭ Continuous positive airway pressure (CPAP) equipment

￭ Anesthesia delivery

￭ Leak detection

￭ Spectrometers

￭ Mass flow controllers

￭ Environmental climate control

￭ Fuel cell control

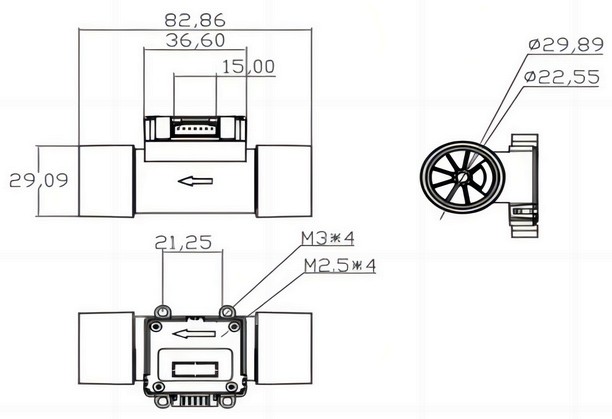

Dimension
