Mass air flow sensor & gas flow meter

PN: S5019

Introduction

The S5019 mass air flow sensor is made of microelectromechanical systems (MEMS) flow sensing chip. It is suitable for clean, relatively dry gas flow measurement and process control for various purposes.

The unique packaging technology allows the product to meet different ranges of flow measurement, ensuring high sensitivity, high reliability, high stability and low cost.

S5019A is based on a MEMS flow sensing unit and a high-precision digital processing and calibration circuit (MCU). The integrated delta-sigma A/D converter, logic circuit with internal calibration function and MCU processor together ensure that the sensing signal is real-time Effectively collect, obtain accurate flow signals, and perform corresponding compensation algorithm processing internally,

so there is no need to perform any external calibration compensation to ensure high-precision flow output; Friendly digital output communication method, users can easily communicate and obtain corresponding data information.

Features

￭ High accuracy (1.5% F.S accuracy)

￭ Linear output and no temperature compensation required

￭ Maintain long-term stability with minimal zero drift

￭ Fast response time (65 ms response time)

￭ Wide flow velocity range 0-60m/s, impact resistance 100g

￭ Solid-state sensing core (no surface voids or fragile membranes), resistant to clogging and pressure shock

￭ Analog output (1-5 V) (digital RS485 communication output available)

￭ Suitable for relatively humid gas measurements

￭ Operating temperature: -25°C to 85°C, Storage temperature: -40°C to 90°C,Humidity: 0~100%RH

￭ Sensor is resistant to condensation water

Applications

￭Industrial
￭ Medical
￭ Petroleum
￭ Instrumentation
￭ Gas
￭ Chemical industry
￭ Smelting
￭ Food processing
￭ Electromechanical Equipment

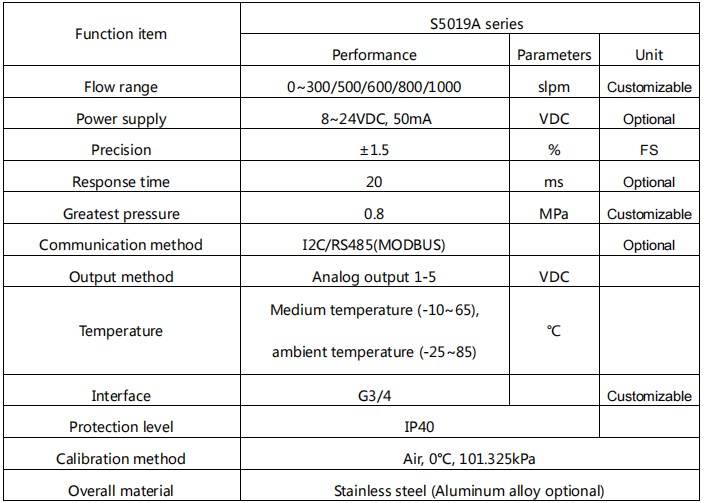

Performance Parameter

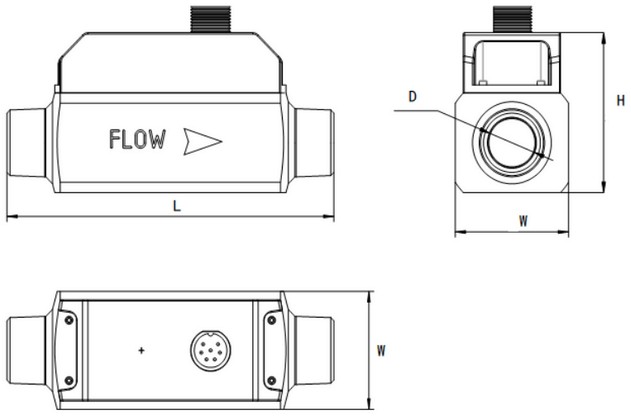

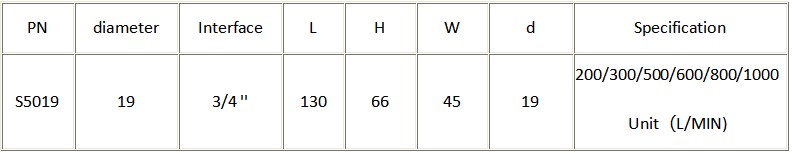

Dimension
